Clear View Mesh Pool Fence For Residential Pools

Pool Boundaries with a More Open View

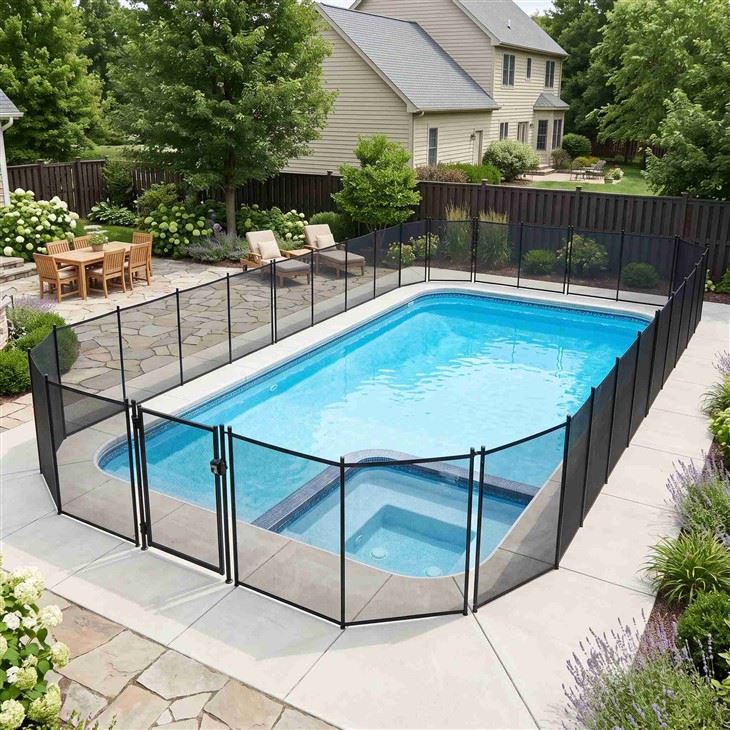

A pool fence becomes part of the view from a terrace, garden or outdoor seating area. ZNZ Clear View Mesh Pool Fence is designed for projects where buyers want a defined pool boundary while retaining visibility through the fence.

The system uses mesh panels supported by poles inserted into ground sleeves. Connectors join adjacent sections, while a separately specified gate provides an entrance. This construction allows the fence layout and access point to be considered together during project planning.

For residential installations, visibility and access control serve different purposes. The mesh helps maintain sightlines; the completed fence and gate establish the boundary. A clear view through the mesh does not replace supervision.

ZSM-02 Mesh: Construction and Product Difference

The ZSM-02 Premium Clear View Mesh, also named Hampton Mesh in the catalog, is made from woven polyester coated in PVC. Its specified mesh count is 35 holes per square inch.

ZNZ also lists ZSM-01 Standard Mesh, or Malibu Mesh, with 100 holes per square inch. The ZSM-02 design has larger openings and is presented as the more open-view option. These figures describe hole counts; they are not transparency percentages or measured light-transmission values.

For purchasing teams, the model number provides a clear way to distinguish the two mesh options. Specifying ZSM-02 in sample requests and purchase documents helps prevent substitution with the standard mesh.

Reinforced vinyl edging runs around the mesh panel to help maintain tension and reduce sagging. Buyers can assess the mesh appearance and finished border together when reviewing a physical sample.

Section Sizes for Perimeter Planning

The imperial fence range includes:

Heights: 4 ft and 5 ft.

Section lengths: 6 ft, 9 ft, 12 ft, 15 ft and 18 ft.

The catalog also lists a metric range with a 1 m height and section lengths of 1, 2, 3, 4 and 5 m. The required size, mesh model and pole combination should be specified together when requesting a quotation.

Section length affects how the perimeter is divided for ordering and installation. Buyers should prepare a layout showing straight runs, corners and the intended gate position before finalizing quantities. The selected fence height must be checked against the requirements of the project location.

Removable Sections and Matching Ground Sleeves

The removable construction uses poles seated in installed ground sleeves. When a section is removed, sleeve caps can cover the remaining openings.

ZNZ lists several support options, including Peg Pole, Heavy Y Pole and Quad-X Pole designs. Sleeve selection depends on the pole: the catalog distinguishes sleeves for Peg Poles from those intended for Y, X and Solid Core Poles.

For an installation business, purchasing poles and sleeves as a matched configuration helps keep the supplied components consistent. Hole dimensions and installation details should follow the instructions for the selected system and deck construction.

Gate Selection and Fence Colors

A self-closing gate can be specified as part of the overall layout. The gate range includes Round Post, U-Frame and Arched designs, with key-lockable functionality described in the product information.

Gate style, opening dimensions and hardware should be confirmed separately. A standard fence section should not be assumed to include a gate, hinges or a lock.

Listed fence colors include black, brown, beige, white, grey and green. Confirm the intended combination of mesh, edging, poles and gate components against samples when appearance needs to coordinate with paving or outdoor furniture.

Preparing a Complete Supply Order

For a quotation, provide the perimeter layout, fence height, preferred section lengths, ZSM-02 mesh requirement, pole selection and color. Include the gate position and required accessories so the order can be checked as a complete system.

Packaging options shown in the catalog include cartons with or without inner boxes. Distributors can agree on the packing arrangement and component identification before production, making it easier to separate fence sections, gates and installation accessories when goods arrive.
