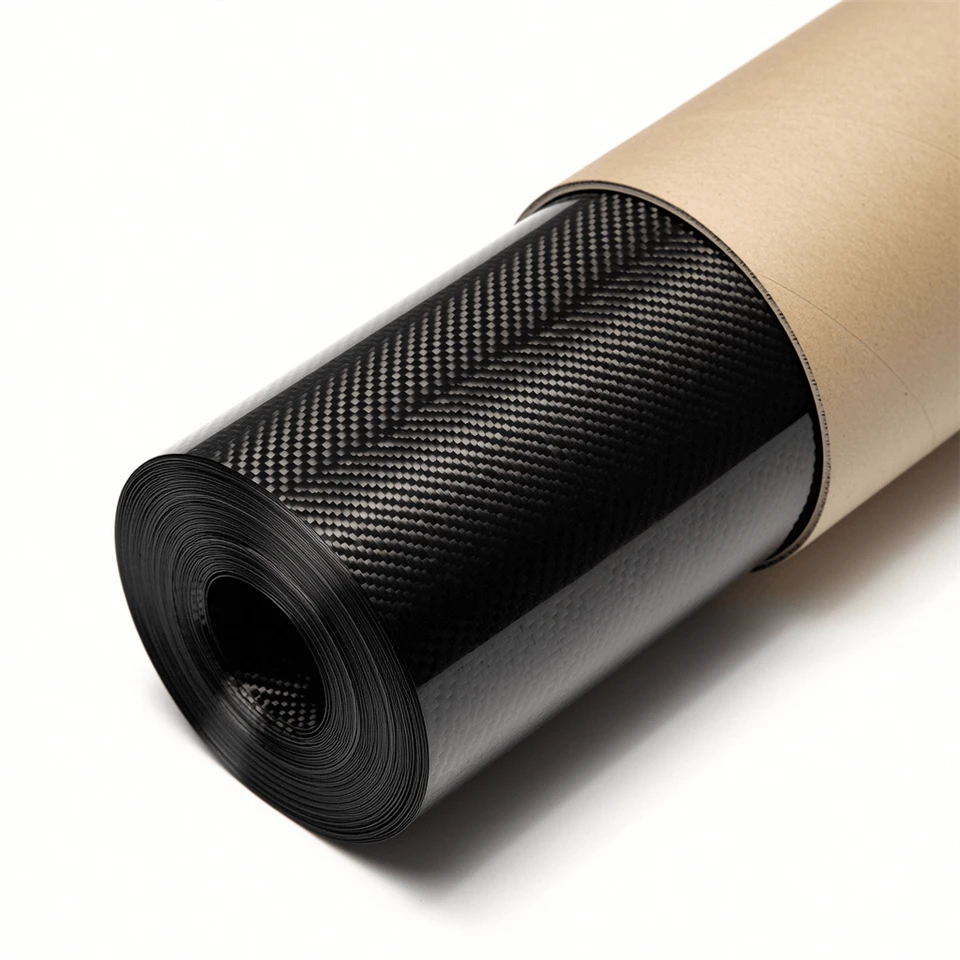

3K Carbon Fiber Fabric Roll
3K Carbon Fiber Fabric Premium 3K carbon fiber fabric with 240gsm density. Ideal for aerospace and automotive composites. Twill weave enhances impact resistance. Available in 20mm to 1m widths. ISO 9001 certified.
Description
3K Carbon Fiber Fabric
Technical Specifications
Weave Type: 2x2 Twill
Weight: 240gsm ±5%
Width: 20mm/50cm/1m (customizable)
Thickness: 0.25mm
Fiber: Toray T300 (12K sub-filaments)
Applications
Aerospace: Wing spar caps, UAV components
Automotive: Hoods, spoilers, chassis reinforcement
Sports: Bicycle frames, tennis rackets
Performance Data
Tensile Strength: 3,500 MPa
Thermal Conductivity: 6.5 W/m·K
Electrical Resistivity: 1.6×10⁻³ Ω·cm
Certifications
ISO 9001:2015 Quality Management
REACH SVHC Compliant
Packaging
Vacuum-sealed rolls with moisture-proof coating
Wooden crates for bulk orders (100+ rolls)
